Creo Parametric surface finish value modification

Placing several surface finish symbols on drawing

Here we select all symbols and want to set value of all symbols to 0.4

Unfortunately, this is impossible to set desired value at ones.
Then we have to set the value one by one for each symbol.

And at last we got finished

Sunday, June 5, 2016

Creo Parametric Components annoying jumps

1. After seeing incorrect placement.

2. Just try to enter in component redefine mode

3. Do nothing just press close.

Always see different component placement - just annoying jumps

Monday, May 2, 2016

Creo Parametric Move component while placing

Move component while placing it in assembly by using 3d dragger is not possible.
First constraint: consident surface-surface(picture m1)

Second constraint: consident point-surface (picture m2)

Firth constraint: coincident point-surface. (picture m3)

Move component is possible only by dragging (picture m4)

Creo Parametric perfect sketcher behavior

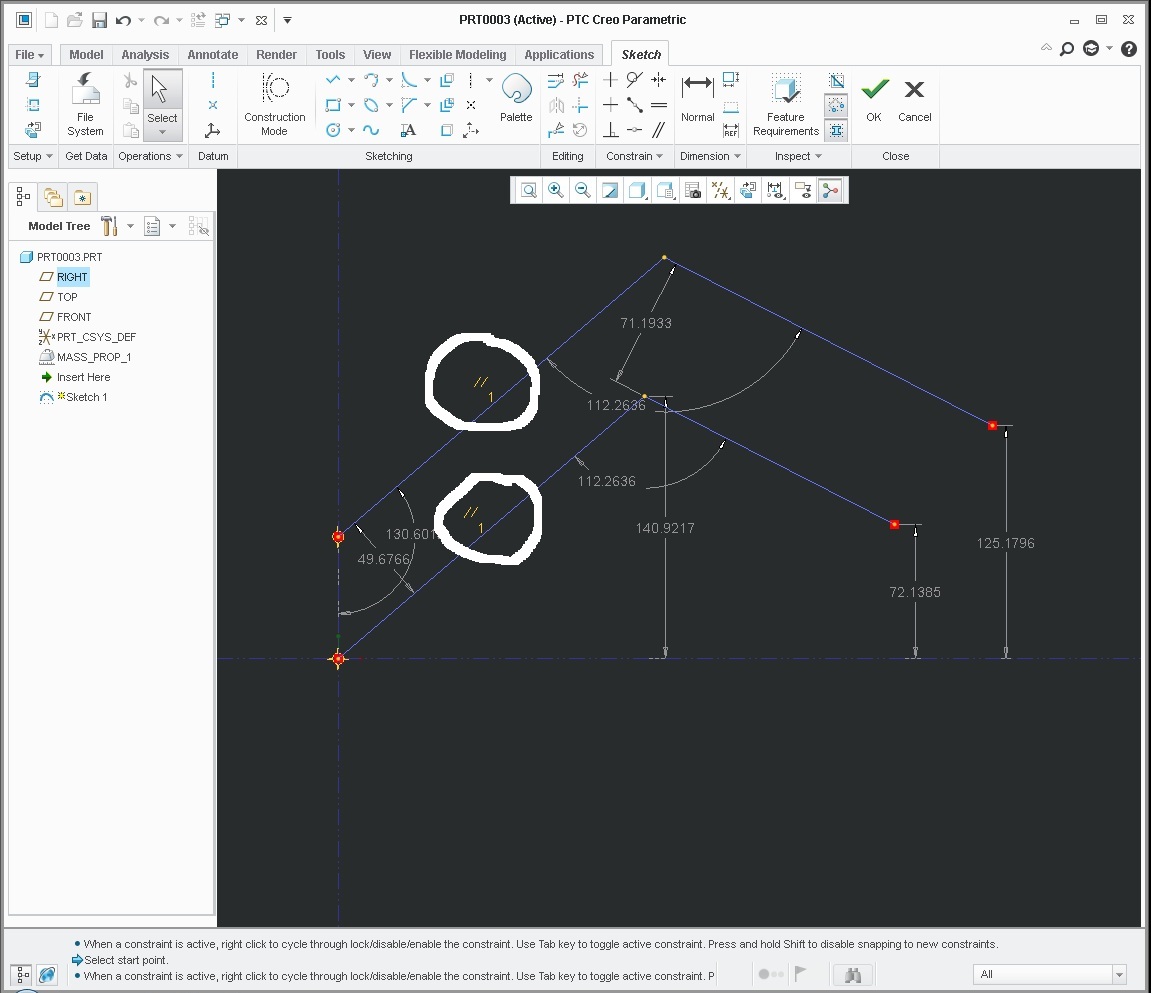

Want to create 54 dimension in sketcher.
Then the Resolve Sketch window pops up to offer delete dimensions 54, 162 and constraints, but no one i want to delete. All offerings, I need to reject.

I cancel creation of needed dimension and then I delete L2 equal lenght constraint from sketcher.
Finally I got opportunity to place 54 dimension in sketcher without any warning.

Very long and perfect procedure to place simple dimension in sketcher.

Wednesday, March 16, 2016

Creo Parametric right click for a content menu in assembly

In assembly with failed component, you cannot call a content menu by right click on part for additional operations for example to hide part. Instead of that you have to call the menu from model tree.
